2  Recursion & Divide-and-Conquer

2.1 Recursion

Introduction to Recursion?

Recursion occurs when a function calls itself.

• Recursion can be direct (when the function calls itself) or indirect (when the function calls some other function that then calls the first function).

• Recursion can also be single (when the function calls itself once) or multiple (when the function calls itself multiple times).

Recursive Algorithm

When designing a recursive algorithm, We must identify

• The base case, which is the part of the problem that we can solve without recursion.

• The recursive case, or the part of the problem that we use recursion to solve.

Factorial

The factorial of a number n is written n! and pronounced “N factorial.”

• The base case: if n=0 then factorial(0)=1

• The recursive case: if n>0 then factorial(n)=factorial(n-1)\times n

int factorial(int n) {
    if(n==0)
        return 1;
    else
        return n * factorial(n-1);
}

Fibonacci Numbers

The Fibonacci numbers are defined by these equations:

• f_{0}=1 and f_{1}=1

• f_{n}=f_{n-1}+f_{n-2} for n>1

int fibonacci(int n)  {
    if(n <= 1)
        return 1;
    else
        return fibonacci(n-1) + fibonacci(n-2);
}

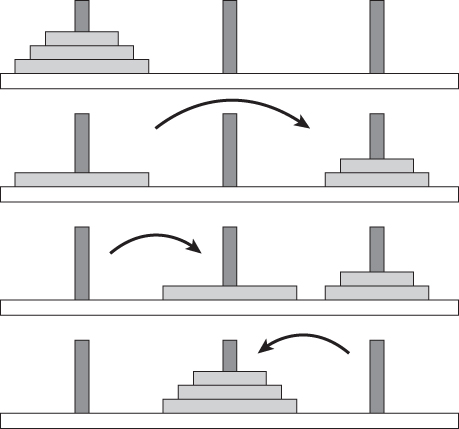

Tower of Hanoi

• The Tower of Hanoi puzzle has three pegs.

• One peg holds a stack of disks of different sizes, ordered from smallest to largest.

• You cannot place a disk on top of another disk that has a smaller radius.

• The goal: move disks from one peg to another without placing a disk on top of a smaller disk.



• To move n disks, recursively move the upper n-1 disks to the temporary peg.

• Then move the remaining disk to the destination peg.

• Finally, move the n-1 upper disks from the temporary peg to the destination peg.



void TowerOfHanoi(int n, char A, char B, char C)  {
    if(n==1)
        printf("Di chuyen dia tren cung tu %d den %d\n", A, C);
    else {
        TowerOfHanoi(n-1, A, C, B);
        printf("Di chuyen dia tren cung tu %d den %d\n", A, C);
        TowerOfHanoi(n-1, B, A, C);
    }
}

2.2 Divide-and-Conquer

Introduction to Divide-and-Conquer

• The divide-and-conquer approach employs this same strategy on an instance of a problem.



• It divides an instance of a problem into two or more smaller instances.

• The smaller instances are usually instances of the original problem, solves them recursively

  • If solutions to the smaller instances can be obtained readily, the solution to the original instance can be obtained by combining these solutions.

  • If the smaller instances are still too large to be solved readily, they can be divided into still smaller instances.

• The divide-and-conquer can be top-down or bottom-up approach.



Binary Search

Locates a key x in a sorted (nondecreasing order) array \boldsymbol{a}

• If x equals the middle item, quit. Otherwise:

  1. Divide the array into two subarrays about half as large. If x is smaller than the middle item, choose the left subarray. If x is larger than the middle item, choose the right subarray.

  2. Conquer (solve) the subarray by determining whether x is in that subarray. Unless the subarray is sufficiently small, use recursion to do this.

  3. Obtain the solution to the array from the solution to the subarray.

int binarySearch(int a[], int l, int r, int x) {
    int m = (l+r)/2;
    if(l>r) return -1;
    if(a[m]==x)
        return m;
    if(a[m]>x)
        return binarySearch(a, l, m-1, x);
    if(a[m]<x)
        return binarySearch(a, m+1, r, x);
}

2.3 Workshop

Quiz

1. What is the recursion?

Exercises

• Write a program that solves the Tower of Hanoi puzzle and then displays the moves by graphically drawing disks moving between the pegs
