10  Trees & Binary Trees

10.1 Trees

Introduction

Trees are a mathematical abstraction that play a central role in the design and analysis of algorithms because

  • Trees are used to describe dynamic properties of algorithms.
  • Trees are fundamental data storage structures that combine advantages of an array and a linked list.
    • Searching as fast as array.
    • Insertion and deletion as fast as linked list.

Definition

A tree is a nonlinear collection. It consists of

  • A set of nodes that often represent entities.
  • A set of edges/links that represent the relationship between nodes.

A tree T (rooted tree)

  • is empty tree

    T=\emptyset

  • is a node r (called the root node) connected to a sequence of of disjoint trees {T_{1},T_{2},...,T_{m}} (called the subtrees) T=\left\{ r\to\left\{ T_{1,},T_{2},...,T_{m}\right\} \right\}

  • Tree vs. Subtree

Terminology

In a tree

  • Node: a simple object
  • Edge/Link/Branch: a connection between two nodes

In a connection

  • Parent node: above a node

  • Child node: below a node

In a tree or subtree

  • Root node: node doesn’t have parent

  • Leaf node/External node: node doesn’t have children

  • Internal node: node has children

  • Sibling nodes: nodes have the same parent

  • Degree of node p deg(p)=\text{the number of children of }p

  • Degree of tree T \deg\left(T\right)=\max\left(\deg\left(p_{i}\right),p_{i}\in T\right)

  • Level/depth of node p: level\left(p\right)=\left\{ \begin{array}{cc} 0 & p=root\\ level\left(parent\left(p\right)\right)+1 & p\ne root \end{array}\right.

  • Height of tree T: height\left(T\right)=\max\left(level\left(p_{i}\right)+1,p_{i}\in T\right)

  • Path: A path in a tree is a list of distinct nodes in which successive nodes are connected by edges in the tree. In a path p_{1}-p_{2}-...-p_{k} is path, node p_{1} is the ancestor and p_{k} is the descendant.

  • The path length of a tree is the sum of the levels of all the tree’s nodes.
  • The internal path length of a tree is the sum of the levels of all the tree’s internal nodes.
  • The external path length of a tree is the sum of the levels of all the tree’s external nodes

M-ary trees

An M-ary tree is each node connected to an ordered sequence of M trees that are also M-ary trees

  • linear tree/linked list: each node has only 1 subtree
  • binary tree: each node has 2 subtrees
  • ternary tree: each node has 3 subtrees

Parental trees

A parental tree is a tree where each node only keeps a reference to its parent node

The parental tree representation is used in numerous places:

  • Prim’s algorithm: storing a minimum spanning trees of a weighted graph
  • Dijkstra’s algorithm: storing the minimum paths in a weighted graph
  • Tree search based AI algorithms in general

Visualsing trees

  • Seven visual representations showing the same tree dataset

Applications

  • The Bernoulli family tree

  • Animal tree

  • Management tree

  • Syntax tree of the sentenece “the cat sat on the mat”

  • Tree of the algebra expression (a+b)*(c-d)

  • A file directory on Linux OS

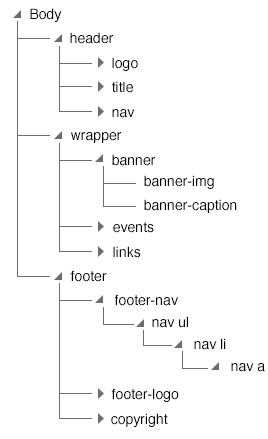

  • Structure of html file

  • Database

10.2 Binary Trees

Concepts

Binary Trees

A binary tree is each node connected to a pair of binary trees, which are called the left subtree and the right subtree of that node

  • Each node may have up to two successors, a left child node or a right child node.
  • The concrete representation that we use most often is a structure with two links (a left link and a right link) for each node.

Binary-tree representation

struct Node {
    Item item;
    Node *left, *right;
};
typedef Node *link;

Special Binary Trees

A full binary tree is binary in which each internal node has two children.

A complete binary tree is a binary tree in which

  • From level 0 to h-1: the tree is completely full (maximum number of nodes)
  • At the last level h: nodes are filled from left to right.

A perfect binary tree in which all internal nodes have two children and all leaf nodes are at the same level.

Number of nodes in binary tree

  • size is the number of nodes in a binary tree/subtree T size(T)=size(T\to leftSubtree)+size(T\to rightSubtree)+1
Level Maximum number of nodes at each level
0 2^{0}=1
1 2^{1}=2
2 2^{2}=4
3 2^{3}=8
…
10 2^{10}=1024
…
l 2^{l}

Height in binary tree

  • A binary tree/subtree T

height(T)=\max(height(T\to leftSubtree),height(T\to rightSubtree))+1

Properties of Binary Trees

A binary tree T

  1. The number of nodes at level l is
    • at least 1 and
    • at most 2^{l}.
  2. The of nodes in a binary tree of height h is
    • at least h and
    • at most 2^{h}-1.
  3. The number of leaf nodes in a binary tree of height h is
    • at least 1 and
    • at most 2^{h-1}.
  4. The height of a binary tree with N nodes is
    • at least \log_{2}(N+1) and
    • at most N.
  5. A binary tree with N nodes has N+1 null links and N-1 not null links.

Binary Tree API

Representing a Binary Tree

  • A binary tree is represented by a reference to its root node.

    link root;

  • An empty binary tree is represented with a reference whose value is null.

    template <class Item>
class BinaryTree {
public:
    struct Node {
        Item item;
        Node *left, *right;
        Node(Item val) {
            item = val;
            left = nullptr;
            right = nullptr;
        }
        Node(Item val,Node *leftChild
        , Node *rightChild) {
            item = val;
            left = leftChild;
            right = rightChild;
        }
    };
    typedef Node *link;
private:
    link root;
public:
    ...
};

Traversal of Binary Trees

  • A traversal of a binary tree is a systematic method of visiting each node in the binary tree. There are three binary tree traversal techniques:
    • Preorder traversal
    • Inorder traversal
    • Postorder traversal

Preorder Traversal

  • Preorder traversal visits the root first, and then recursively traverses the left and right subtrees.

    void preorder(link root) {
    if (root != nullptr) {
        visit(root);
        preorder(root->left);
        preorder(root->right);
    }
}

Inorder Traversal

  • Inorder traversal recursively traverses the left subtree, then visits the root, and then traverses the right subtree.

    void inorder(link root) {
    if (root != nullptr) {
        inorder(root->left);
        visit(root);
        inorder(root->right);
    }
}

Postorder Traversal

  • Postorder traversal recursively traverses the left and right subtrees, and then visits the root.

    void postorder(link root) {
    if (root != nullptr) {
        postorder(root->left);
        postorder(root->right);
        visit(root);
    }
}

Draw tree

  • This recursive program keeps track of the tree height and uses that information for indentation in printing out a representation of the tree that we can use to debug tree-processing programs

    void printNode(Item x, int h) {
    for (int i = 0; i < h; i++)
        cout << "  ";
    cout << x << endl;
}
void printTree(link t, int h) {
    if (t == nullptr) {
        for (int i = 0; i < h; i++)
            cout << "  ";
        cout << "* " << endl;
        return;
    }
    printTree(t->left, h + 1);
    printNode(t->item, h);
    printTree(t->right, h + 1);
}
void printTree() {
    printTree(root, 0);
}

10.3 Binary Search Trees

Concepts

  • Binary search trees are binary trees that organize their nodes to allow a form of binary search.
  • Binary search trees work with values such as strings or numbers, that can be sorted.
  • The idea is to store values in nodes so that small values are stored in the left subtree, and larger values are stored in the right subtree.

A binary search tree (BST) is a binary tree, at each node p,

  • Every key stored in the left subtree of p is less than the key stored at p.

    \forall q\in\boldsymbol{LeftSubtree}\left(p\right):q.key<p.key

  • Every key stored in the right subtree of p is greater than key stored at p.

    \forall q\in\boldsymbol{RightSubtree}\left(p\right):q.key>p.key

  • A binary search tree

template <class Key, class Value>
class BST {
public:
    struct Node {
        Key key;
        Value value;
        int N, h;
        Node *left, *right;
        Node(Key key, Value value) {
            this->key = val;
            this->value = value;
            N = 1; h = 1;
            left = nullptr;
            right = nullptr;
        }
    };
    typedef Node *link;
private:
    link root;
public:
    ...
};

Tree API

Size & Height

    int size() {
        return size(root);
    }
    int size(link x) {
        if (x == nullptr) { return 0; }
        else return x.N;
    }
    int height() {
        return height(root);
    }
    int height(link x) {
        if (x == nullptr) { return 0; }
        else return x.height;
    }

Illustration

Searching 20 (search hit)

Insert

Insert. If less, go left; if greater, go right; if null, insert.

The strategy for adding (key,value) to a binary search tree is recursive.

  • Base case: if the tree is empty, create a tree with a single node containing (key,value).
  • Non base case: Compare key to the key value of the root node x
    • If key is less, recursively add key to the left subtree.
    • If key is greater, recursively add key to the right subtree.

Illustration

  • Built BST from keys {4, 3, 5, 1, 2, 7, 9, 8}. The initial is a empty tree.

  • Insert 4

  • Insert 3

  • Insert 5

  • Insert 1

  • Insert 2

  • Insert 7

  • Insert 9

  • Insert 8

Tree shape

  • Many BSTs correspond to same set of keys.
  • Tree shape depends on order of insertion.
  • Number of comparisons for search/insert is equal to 1 + depth of node.

  • If N distinct keys are inserted into a BST in random order, the expected number of comparisons for a search/insert is \sim2\ln N
  • Typical BST, built from 256 random keys

Minimum and maximum

Minimum. Smallest key in BST.

Maximum. Largest key in BST.

Floor

Computing the floor of key k

  • Case 1 (k equals the key in the node): the floor of k is k
  • Case 2 (k is less than the key in the node): the floor of k is in the left subtree
  • Case 3 (k is greater than the key in the node): the floor of k is in the right subtree if there is any key \leq k in there; otherwise, it is the key in the node

Ceiling

Computing the ceiling of key k

  • Case 1 (k equals the key in the node): the ceiling of k is k
  • Case 2 (k is greater than the key in the node): the ceiling of k is in the right subtree
  • Case 3 (k is less than the key in the node): the ceiling of k is in the left subtree if there is any key \geq k in there; otherwise, it is the key in the node

Rank and selection

Rank. How many keys < k ?

Select. Key has rank k ?

Delete min or max

To delete the minimum (maximum) key

  • Go left (right) until you find a node with null left (right) link
  • Replace that node by its right (left) link
  • Update subtree counts

Delete (Hibbard deletion)

To delete a node with key k, search for the node t containing key k

  • Case 1 (0 children): delete t by setting parent link to null
  • Case 2 (1 child): delete t by replacing parent link
  • Case 3 (2 children): find successor x of t (x has no left child); delete the minimum in t’s right subtree; and put x in t’s spot

and update subtree counts

Illustration

  • Deleting leaf node 4: Before deletion

  • Deleting leaf node 4: After deletion

  • Deleting node 7: Before deletion

  • Deleting node 7: After deletion

  • Deleting node 15: Before deletion

  • Deleting node 15: After deletion

Hibbard deletion: analysis

  • Unsatisfactory solution. Not symmetric.
  • Surprising consequence. Trees not random \to\sqrt{N} per op.
  • Longstanding open problem. Simple and efficient delete for BSTs.

Deletion: lazy approach

To remove a node with a given key:

  • Set its value to null.
  • Leave key in tree to guide search (but don’t consider it equal in search).
  • Deleting node 15

Performance Characteristics

  • Summary of Operations
operation BST
search h
insert h
delete \sqrt{N}
min/max h
floor/ceiling h
rank h
select h
ordered iteration N

Cost summary for symbol-table implementations

implementation search (worst) insert (worst) remove (worst) search hit (avg) insert (avg) remove (avg) ordered iteration key
unordered list N 1 N N/2 1 N/2 no equal
ordered list N N N N/2 N/2 N/2 yes compare
ordered array \log_{2}N N N \log_{2}N N/2 N/2 yes compare
BST N N N c\log_{2}N c\log_{2}N \sqrt{N} yes compare
goal?

Note: c=1.39

10.4 Workshop

Quiz

  1. What is a tree?

  2. What is a binary sreach tree?

Exercises

10.5 References
